Dorsal Wrist
March 2026
Author: R. Conner Dixon, MD, CAQ-SM
Peer-Reviewer and Final Editor: Alex Tomesch, MD, CAQ-SM
Peer-Reviewer and Final Editor: Alex Tomesch, MD, CAQ-SM

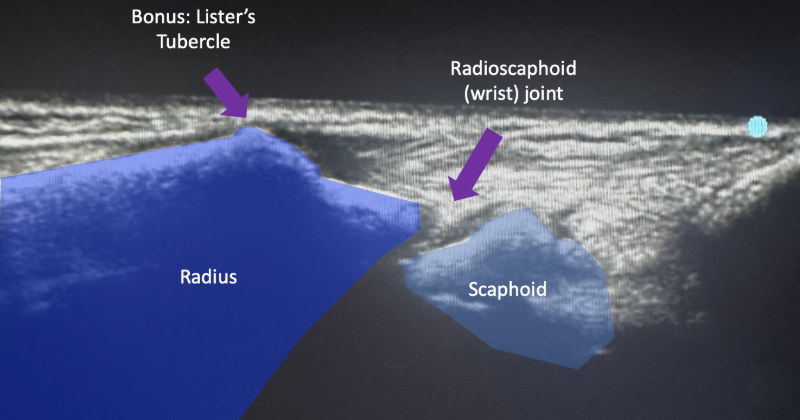

This image was obtained using a linear probe in a longitudinal orientation along the dorsal aspect of the wrist.
Image 1: Author’s own images and annotations
Image 2: Demonstration of the ultrasound technique for this case. Author’s own image.

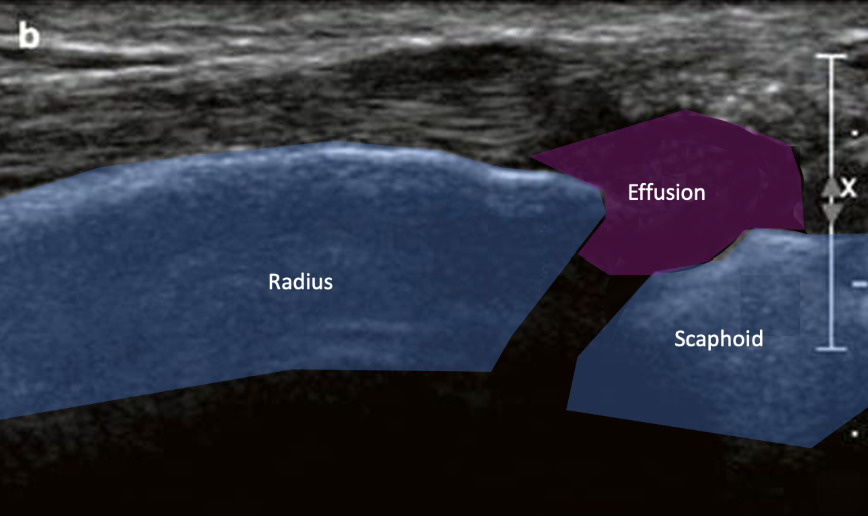

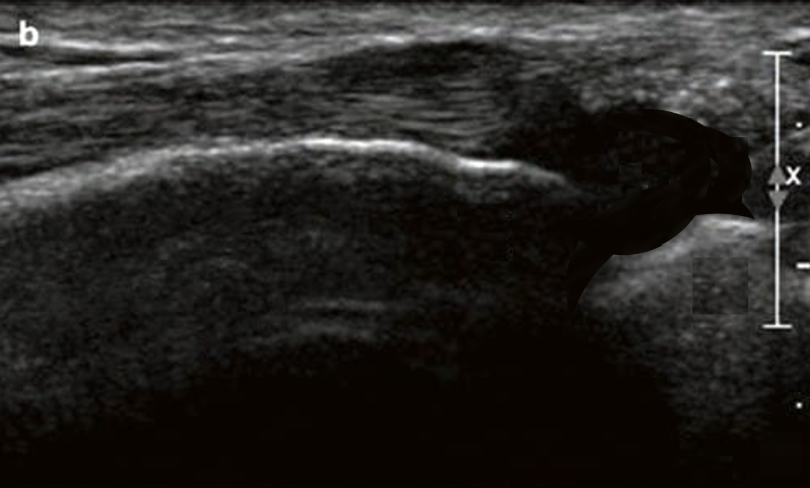

Image 4: Case courtesy of NYSORA
How would you perform an ultrasound guided arthrocentesis of the wrist joint?
-
Place the probe in a longitudinal fashion in the dorsal radiocarpal area.
-
Identify the effusion.
-
Using an in-plane approach, guide the needle under US-guidance, aspirating as you go.
Note: An out-of-plane approach can also be used
-
As you visualize the needle in the anechoic fluid, you should be getting synovial fluid return

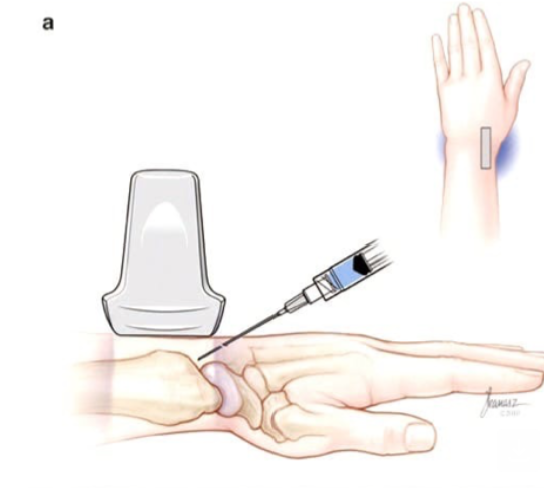

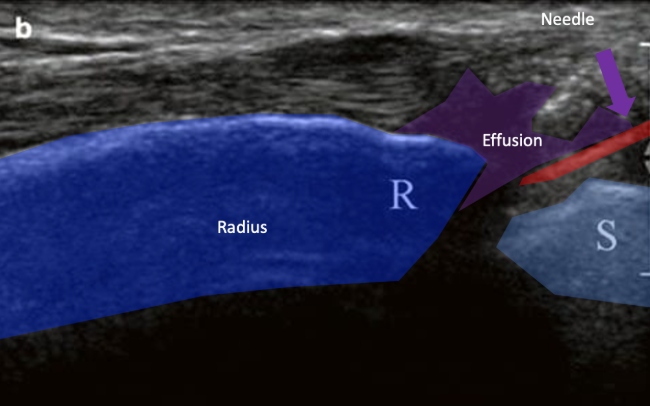

Image 6-7: Demonstration of ultrasound-guided wrist arthrocentesis, images courtesy of NYSOR (author’s own annotations)
